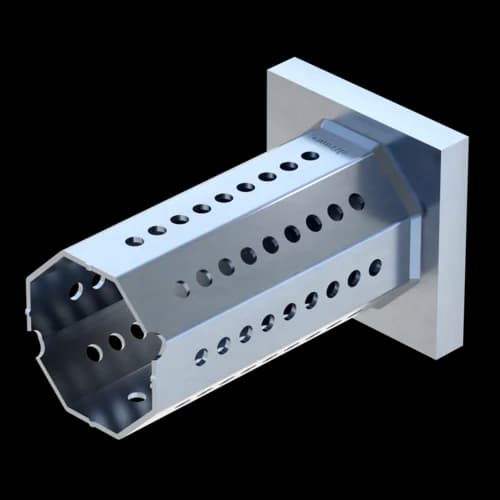

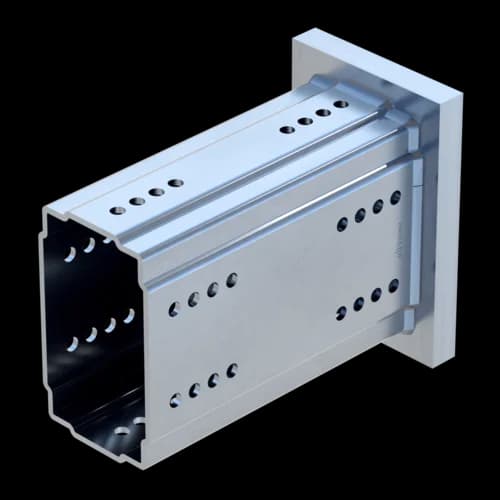

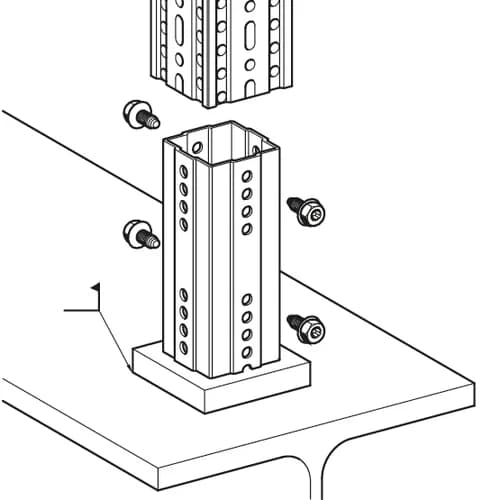

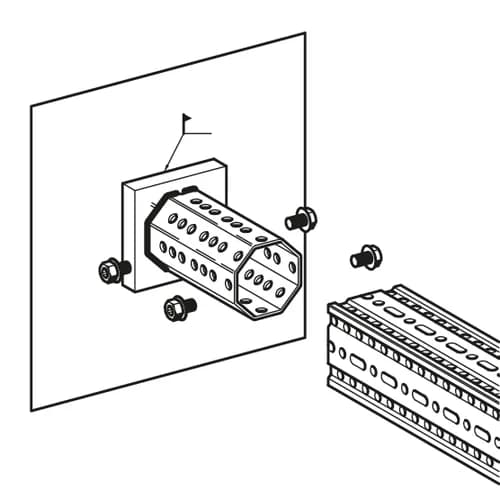

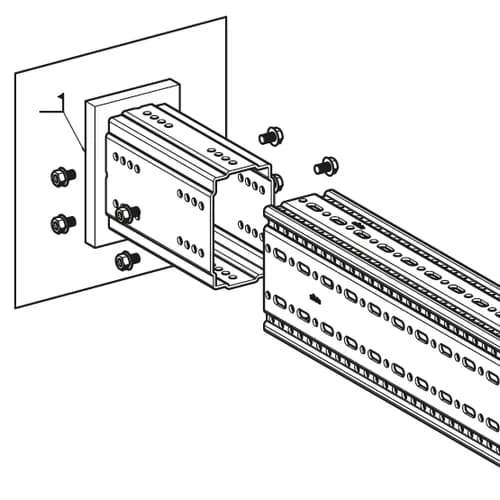

Welding plate with square insert to receive siFramo section. May be implemented into the structural steel design in anticipation of siFramo-frames or used in situ as a connection element when clamping is not an option but hot works are permitted.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VX,perm. | VX,perm. | -VY,perm. | VY,perm. | -VZ,perm. | VZ,perm. |
ASA-4KT F100 HCP | 39,40 kN | 39,40 kN | 58,90 kN | 58,90 kN | 58,90 kN | 58,90 kN |
ASA-8KT F100 HCP | 26,60 kN | 26,60 kN | 43,60 kN | 43,60 kN | 43,60 kN | 43,60 kN |
Type | -MX,perm. | MX,perm. | -MY,perm. | MY,perm. | -MZ,perm. | MZ,perm. |
ASA-4KT F100 HCP | 7,1 kNm | 7,1 kNm | 8,5 kNm | 8,50 kNm | 8,5 kNm | 8,5 kNm |
ASA-8KT F100 HCP | 3,3 kNm | 3,3 kNm | 5,4 kNm | 5,40 kNm | 5,4 kNm | 5,4 kNm |
