Overview of Types
General Information

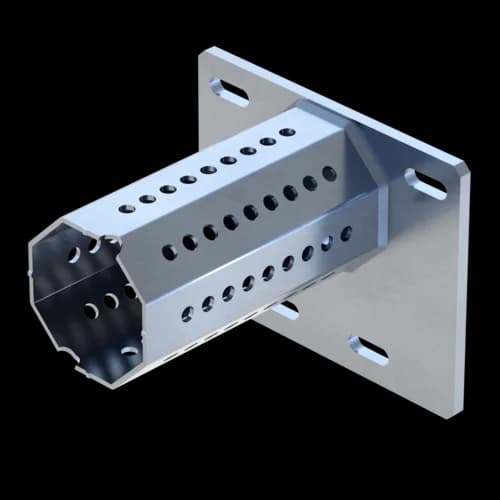

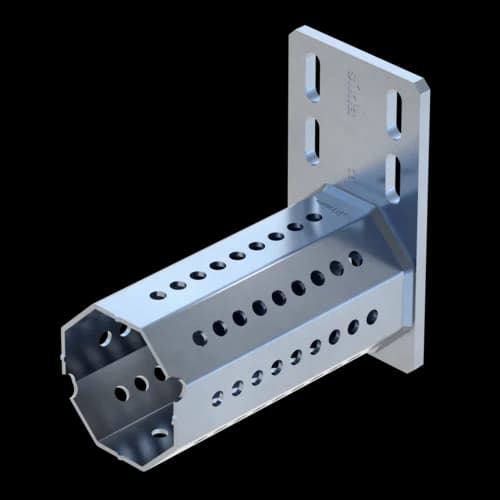

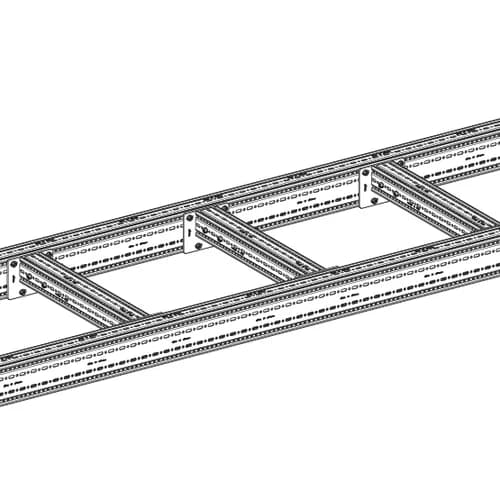

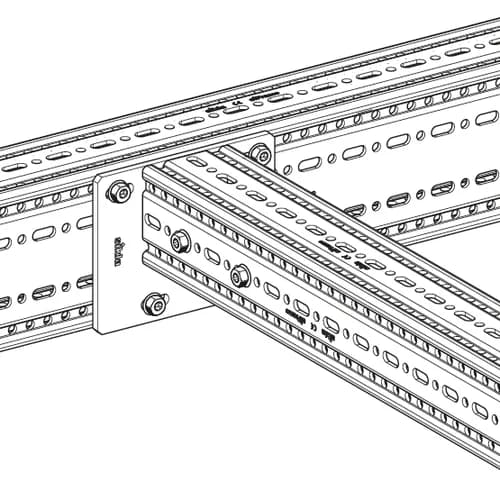

Plug-in component designed to create an endplate at the open end of a Beam Section TP F 100 or a Cantilever bracket AK F 100. Variation types F 100-80 (E) are designed to combine F 100 with F 80 beam sections. Octagonal insert allows full utilisation of beam section within the space required by the End Support STA itself.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VX,perm. | VX,perm. | -VY,perm. | VY,perm. | VZ,perm. |
STA-E F100 HCP | 23,80 kN | 23,80 kN | 17,10 kN | 17,10 kN | 38,60 kN |
Type | MY,perm. | -MZ,perm. | MZ,perm. |
STA-E F100 HCP | 30,00 kNm | 0,5 kNm | 0,5 kNm |
