TPH F100 C
HCP
TPH F100/80 C
HCP
HCP
HCP
HCP
Group: A825
Form-fitting, reinforcing bracket for Beam Section TP F 100
Mounting directly to the building structure or directly to the free-standing or concret-embedded profile
Connecting one Beam Section F100 90° to another one by using 6 x Self Forming Screw FLS applied through all elongated holes.
Connecting to any other surface or member by using 2 x Self Forming Screws FLS through the two elongated holes on the top of the Beam Section Holder TPH F80 plus 2 appropriate fixing elements up to M12 through the two holes “d1”.
Info | Type | Weight | Quantity | Part number | |

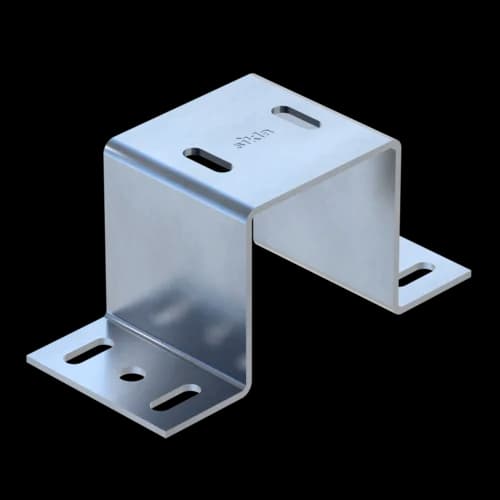

| TPH-C F100 HCP | 1.24 kg/pcs. | 10 pcs. | 113084 | ||
Interface element to connect 90° intersecting Beam Sections F100. Alternatively the Beam Section Holder TPH may be used to connect only one beam section to an even surface with suitable wall anchors or with cast-in channel accessories.
Certification
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Type | -VX,perm. | VX,perm. | -VY,perm. | VY,perm. | -VZ,perm. | VZ,perm. |
TPH-C F100 HCP | 16,70 kN | 16,70 kN | 29,10 kN | 29,10 kN | 18,80 kN | 18,80 kN |
Type | -MY,perm. | MY,perm. | -MZ,perm. | MZ,perm. |
TPH-C F100 HCP | 0,8 kNm | 0,8 kNm | 0,7 kNm | 0,7 kNm |
The specified load values are permissible loads and contain the partial safety factors γ(M2) = 1,25 (DIN EN 1993-1-8:2010-12, chart 2.1) and γ(G) = 1,35 (DIN EN 1990:2010-12, chart A1.2(B)) for permanent actions.
Also available with DualShield for high corrosion protection within C5H environments.
