Overview of Types
General Information
Tie Rods cater for the lateral forces applied to Support Brackets. Such lateral forces always occur when pipes are laid, in particular when sliding elements are fixed onto Support Brackets, and fett must /fett be safely absorbed by means of Tie Rods fixed to the brackets. Otherwise the Support Brackets run the accute risk of being pulled out of their anchoring components by the forces exerted.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VZ,perm. | VZ,perm. |
STR 300/200 HCP | 7,00 kN | 7,00 kN |
STR 725/400 HCP | 12,00 kN | 12,00 kN |

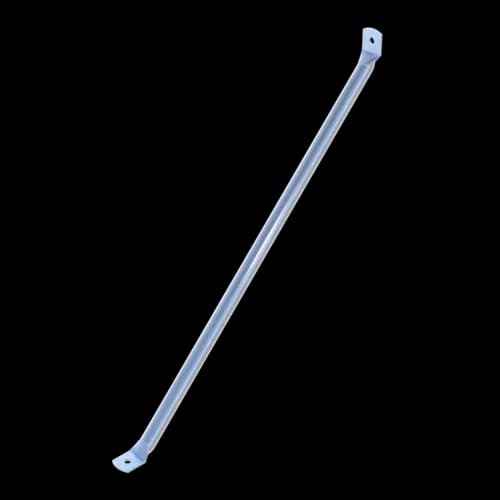

STR 880/550 HCP | 12,00 kN | 12,00 kN |
