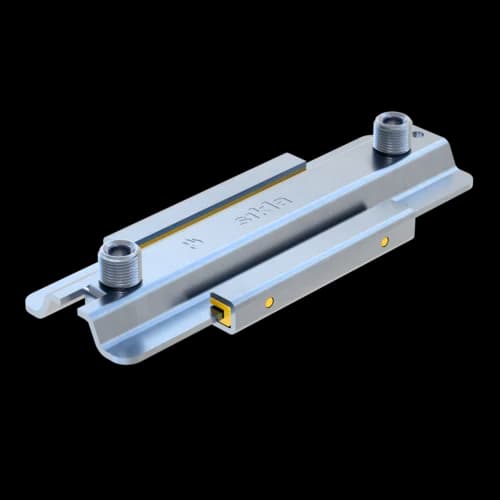

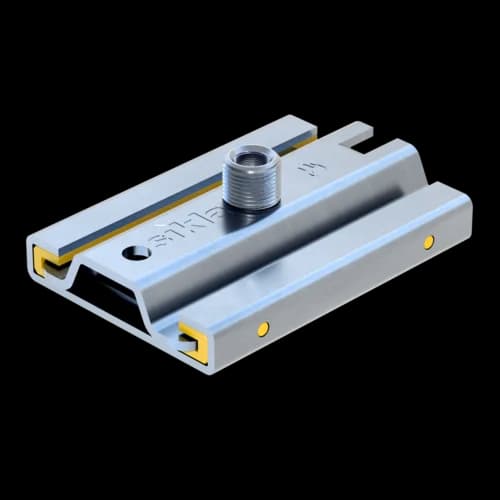

Heavy-duty Slide Set for plant construction. To be used preferably in combination with Sikla Pipe Clamp Stabil D-3G and Chilled Water Clamp SKS Top-2C. Various connection options of the pipe clamps depending on the respective load: M12, M16 or with 1/2' adapters using the external thread (see Adapter AD f/f). Sound absorption by means of glass fibre reinforced polyamide slide rails. Especially suitable for ceiling and floor mounting solutions and as a guide for rising pipes. For wall mounting, we recommend the use of the Slide Set H3G on Sikla Support Bracket.
Certification
Technical specifications
Permissible long-term temperature | 130 °C |
Sliding Friction μ | 0,14 |
Static Friction μ0 | 0,18 |
Material base body | steel |
Material sliding element | PA GF |
Surface | galvanisch verzinkt (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. | VZ,perm. |
GS H3G | 5,00 kN | 9,00 kN |
GS H3G2 | 5,00 kN | 9,00 kN |
Fire resistance
Type | FRP 30 | FRP 60 | FRP 90 | FRP 120 |
GS H3G | 1 kN | 0,54 kN | 0,36 kN | 0,26 kN |
GS H3G2 | 1 kN | 0,54 kN | 0,36 kN | 0,26 kN |
