Pivot Joint GE F - ST F100 HCP

Group: A437

Select a Type

Overview of Types
General Information

Overview of Types

General Information

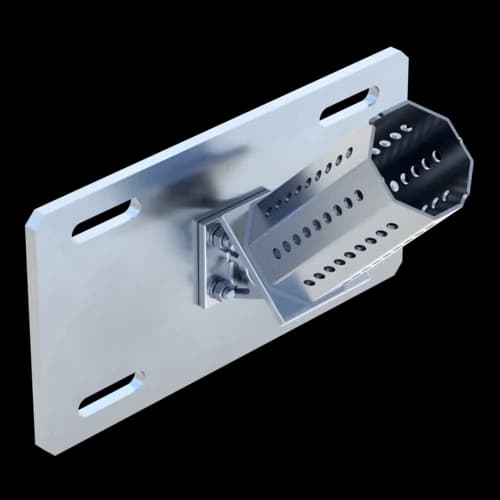

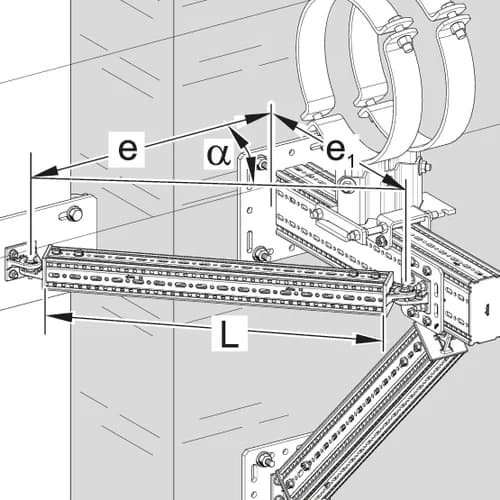

A bracing element for single-armed cantilevers with the siFramo 100 support system on steel beams with flange widths between 80 and 300 mm, as well as for bracing frame structures. The pivot can be installed with angles from 25° to 155°.

Certification

Technical specifications

Material base body	steel
Surface	HCP
Corossion class	C4

Load range

Type	-V_X,perm.	V_X,perm.
GE 80/120-F100 HCP	16,50 kN	16,50 kN
GE 121/160-F100 HCP	16,50 kN	16,50 kN
GE 161/200-F100 HCP	16,50 kN	16,50 kN
GE 201/310-F100 HCP	16,50 kN	16,50 kN

Software

This product is available in the following software.

Info	Type	Weight	Quantity	Part number
	GE 80/120-F100 HCP	6.89 kg/pcs.	1 pcs.	115863

	GE 121/160-F100 HCP	10.51 kg/pcs.	1 pcs.	115864

	GE 161/200-F100 HCP	11.93 kg/pcs.	1 pcs.	115866

	GE 201/310-F100 HCP	11.12 kg/pcs.	1 pcs.	115868
