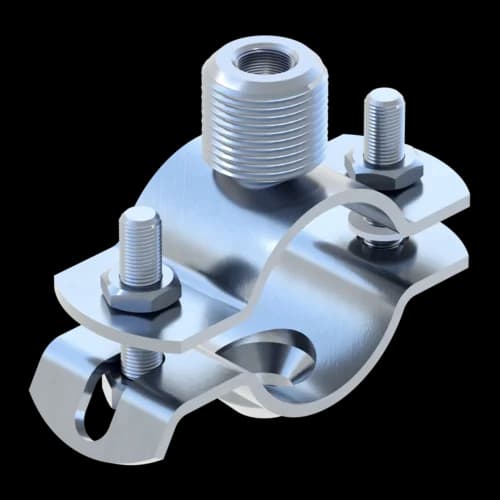

Overview of Types
General Information
For the installation of pipes required for all M&E services in industrial, residential and public buildings.
Certification
Technical specifications
Material base body | steel |
Material connecting element | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VZ,perm. |
STABIL D-3G 10- 14 HCP | 2,00 kN |
STABIL D-3G 15- 19 HCP | 2,00 kN |
STABIL D-3G 20- 24 HCP | 2,00 kN |
STABIL D-3G 25- 30 HCP | 2,00 kN |
STABIL D-3G 31- 35 HCP | 5,00 kN |
STABIL D-3G 36- 41 HCP | 5,00 kN |
STABIL D-3G 40- 45 HCP | 5,00 kN |
STABIL D-3G 48- 53 HCP | 5,00 kN |
STABIL D-3G 54- 59 HCP | 5,00 kN |
STABIL D-3G 60- 65 HCP | 5,00 kN |
STABIL D-3G 67- 72 HCP | 5,00 kN |
STABIL D-3G/M 76- 81 HCP | 5,00 kN |
STABIL D-3G/M 82- 87 HCP | 5,00 kN |
STABIL D-3G/M 88- 93 HCP | 5,00 kN |
STABIL D-3G/M 102- 108 HCP | 5,00 kN |
STABIL D-3G/M 110- 116 HCP | 5,00 kN |
STABIL D-3G/M 124- 129 HCP | 5,00 kN |
STABIL D-3G 133-140 HCP | 8,00 kN |
STABIL D-3G 140-148 HCP | 8,00 kN |
STABIL D-3G 149-155 HCP | 8,00 kN |
STABIL D-3G 159-165 HCP | 8,00 kN |
STABIL D-3G 167-173 HCP | 8,00 kN |
STABIL D-3G 176-184 HCP | 12,50 kN |
STABIL D-3G 188-194 HCP | 12,50 kN |
STABIL D-3G 199-205 HCP | 12,50 kN |
STABIL D-3G 207-216 HCP | 12,50 kN |
STABIL D-3G 219-225 HCP | 12,50 kN |
STABIL D-3G 244-250 HCP | 12,50 kN |
STABIL D-3G 267-273 HCP | 12,50 kN |
STABIL D-3G 278-284 HCP | 12,50 kN |
STABIL D-3G 297-303 HCP | 12,50 kN |
STABIL D-3G 310-316 HCP | 12,50 kN |
