Pipe Clamp RATIO S 12- 20
Group: 1231
Part number 154804

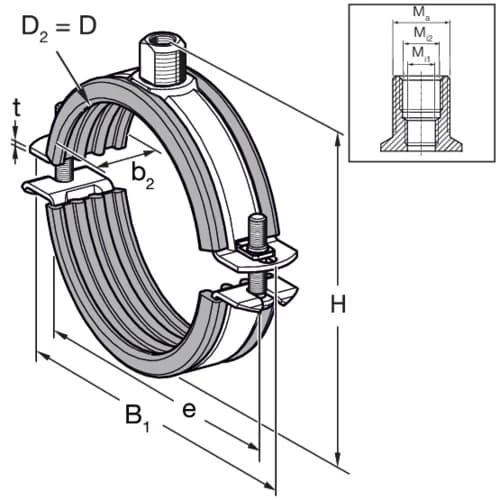

Technical Data
H | 48.5 mm |
D | 17 mm |
B1 | 56 mm |
B2 | 54 mm |
e | 40 mm |
t | 1.5 mm |
Mi1 | M8 |
Mi2 | M10 |
SG | M5 |
SL | 25 mm |
Load range
-VZ,perm. | 0,80 kN |
FRP 30 | 0,22 kN |
FRP 60 | 0,1 kN |
FRP 90 | 0,06 kN |
FRP 120 | 0,03 kN |
Technical specifications
Insertion Isolation | 18 dB(A) |
Material base body | steel |
Material insulation body | SBR/EPDM |
Material connecting element | steel |
Surface | galvanisch verzinkt (Fe//Zn) |
Corossion class | C2 |
Certification
