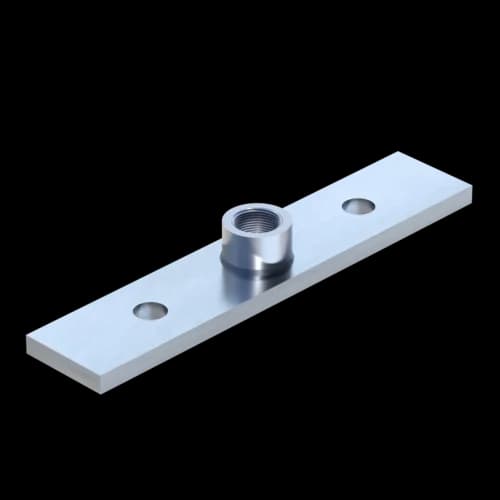

Mounting Plate GPL-ST R 1/2''-100 HCP
Group: 1827
Part number 183791
Attachment component for connecting Beam Section TP F 100 or Channel MS
Login to see prices and availabilities
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
ST R 1/2"
HCP
HCP
HCP
Group: 1827
Part number 183791
Attachment component for connecting Beam Section TP F 100 or Channel MS
Login to see prices and availabilities
BP | 40 mm |
HP | 200 mm |
HP1 | 112 mm |
Mi1 | 1/2" |
tP | 8 mm |
-VX,perm. | 13,00 kN |
VX,perm. | 13,00 kN |
-VY,perm. | 13,00 kN |
VY,perm. | 13,00 kN |
-VZ,perm. | 18,00 kN |
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |

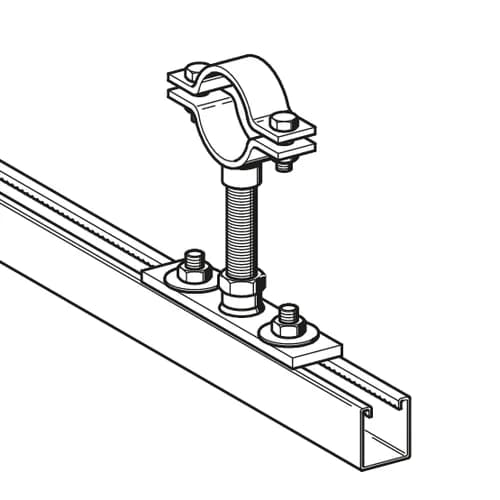

Requires assembly to Beam Bracket Profil with Set MS 5P or two T-Head Bolts TBO HZ 41 M12 at Channel MS.
