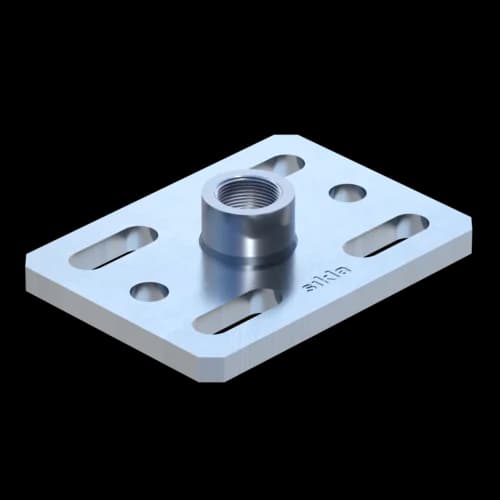

Mounting Plate GPL-ST F 80 1/2'' HCP
Group: A438
Part number 112719

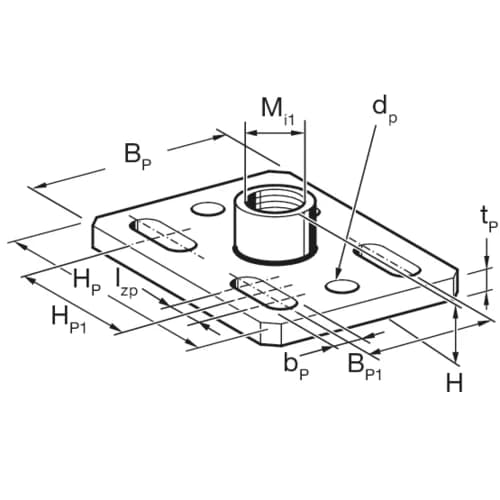

Technical Data
BP | 80 mm |
HP | 110 mm |
BP1 | 50 mm |
HP1 | 60 mm |
dP | 11 mm |
IZP | 20 mm |
Mi1 | 1/2" |
Load range
-VX,perm. | 13,00 kN |
VX,perm. | 13,00 kN |
-VY,perm. | 13,00 kN |
VY,perm. | 13,00 kN |
-VZ,perm. | 18,00 kN |
Permissible bending moment Mb,perm. | 53 Nm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
