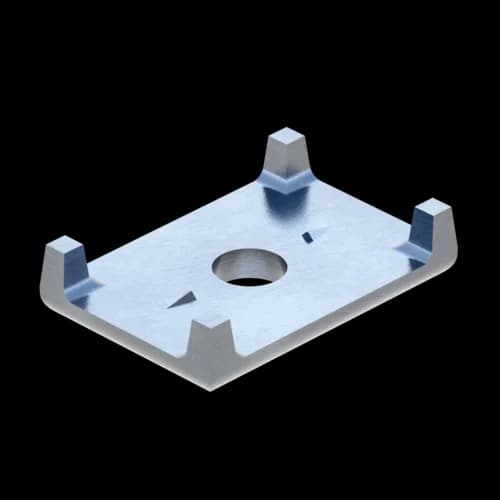

Holding Bracket HK 41 HCP

Group: 1828

Select a Type

Overview of Types
General Information

Overview of Types

General Information

Safety element for Sikla Channels to be used instead of simple washers. The Holding Bracket prevents the edges along the opening of the channels from bending, and ensures optimum load distribution. When loads are imposed along the Channels, Holding Brackets HK 41 provide for additional safety due to embossed teeth, which penetrate the channel. Suitable for single and double channels. Special blanking guarantee high safety and shear forces after reaching form closure, especially for bolted through connecting elements.

Technical specifications

Material base body	steel
Surface	HCP
Corossion class	C4

Software

This product is available in the following software.

Info	Type	Weight	Quantity	Part number
	HK 41/10 HCP	0.059 kg/pcs.	50 pcs.	179606

	HK 41/12 HCP	0.069 kg/pcs.	50 pcs.	179615

	HK 41/16 HCP	0.071 kg/pcs.	50 pcs.	179624

Info	Type	Weight	Quantity	Part number
	HK 41/10 HCP	0.059 kg/pcs.	50 pcs.	179606

	HK 41/12 HCP	0.069 kg/pcs.	50 pcs.	179615

	HK 41/16 HCP	0.071 kg/pcs.	50 pcs.	179624
