General Information

In combination with Sikla Channels MS 41/41, End Support WBD is ideal for setting up support structures attached to walls, floors and ceilings and for direct fixing to steel beams. In combination with Joining Plate AP, a fixing to beams with flange width > 120 mm is possible.

Technical specifications

Primary element material	steel
Connecting element material	cast steel
Surface finish	HCP
Corrosion protection class	C4

Software

This product is available in the following software.

End Support WBD C 41 HCP

Group: 1856

This is a replacement for Old Productname (Part number 123456).

Select a Type

Overview of Types
General Information

Overview of Types

Info	Type	Weight	Quantity	Part number

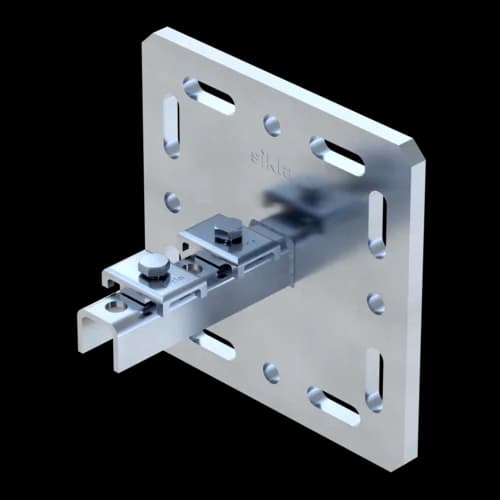

	WBD C 41/41-45 C0 HCP	5.087 kg/pcs.	1 pcs.	179498

	WBD C 41-75/75 C0 HCP	4.744 kg/pcs.	1 pcs.	179507

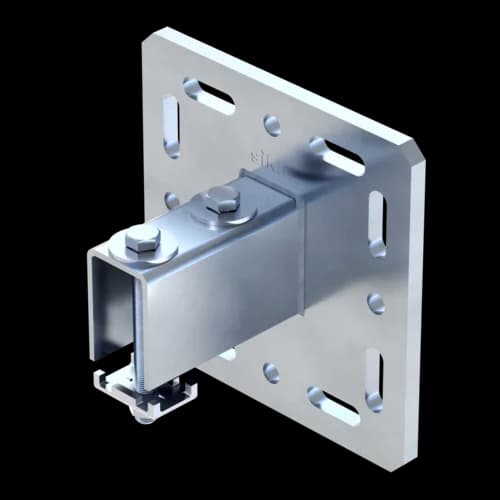

	WBD C 41/41-45 D C0 HCP	5.164 kg/pcs.	1 pcs.	179561
