End Support STA-E F100 HCP
Group: A822
Part number 113074

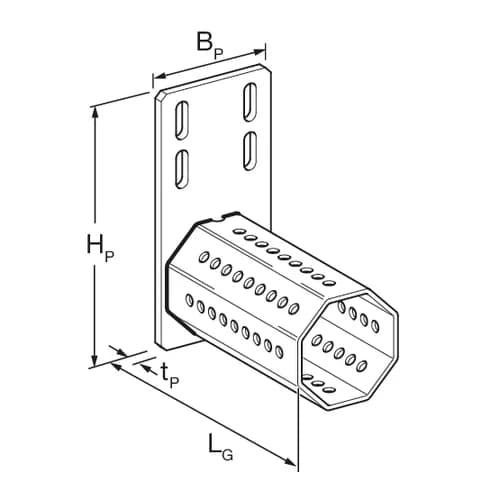

Technical Data
BP | 100 mm |
HP | 185 mm |
HP1 | 40 mm |
LG | 188 mm |
Load range
-VX,perm. | 23,80 kN |
VX,perm. | 23,80 kN |
-VY,perm. | 17,10 kN |
VY,perm. | 17,10 kN |
VZ,perm. | 38,60 kN |
-MX,perm. | 1,7 kNm |
MX,perm. | 1,7 kNm |
MY,perm. | 30,00 kNm |
-MZ,perm. | 0,5 kNm |
MZ,perm. | 0,5 kNm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
