LUW A-Z

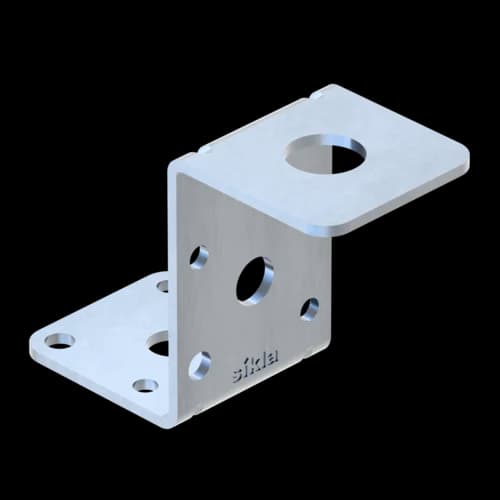

Ducting Angle LUW A-Z
Group: 1621
For mounting rectangular ventilation ducts directly below the ceiling

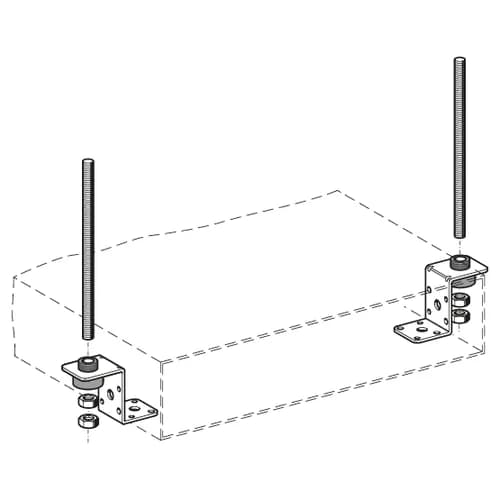

Also suitable for suspended installation with threaded rods
Login to see prices and availabilities
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
LUW A-Z
Group: 1621
For mounting rectangular ventilation ducts directly below the ceiling
Also suitable for suspended installation with threaded rods
Login to see prices and availabilities
Fixing to the duct with rivets (4 - 5 mm), sheet metal screws (4 - 5 mm) or M8 bolts.
Connection to building structure: M8/M10
Info | Type | Weight | Quantity | Part number | Price | |
| LUW A-Z | 0,056 kg/Stück | 100 Stück | 110498 | please log in | ||
Mounting Angle for rectangular ducts installed directly under the ceiling, or for suspended installation when using a threaded rod.
Certification
Primary element material | steel |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
Type | -VZ,perm. |
LUW A-Z | 0,50 kN |
Software
This product is available in the following software.
