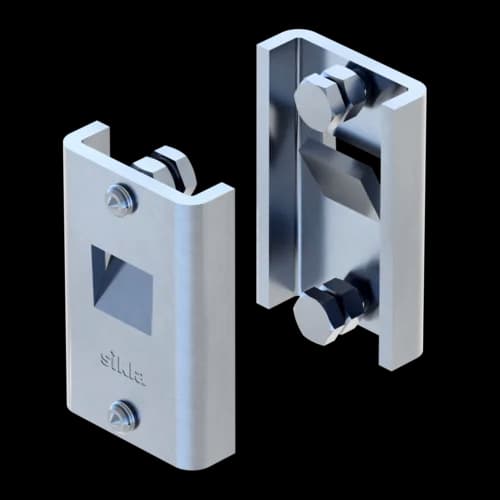

Clamping Ends SKL
Group: 1350
This is a replacement for Old Productname (Part number 123456).
Login to see prices and availabilities
Login or registerOverview of Types
General Information

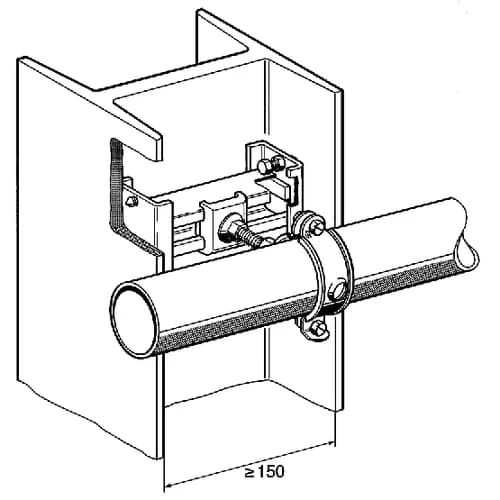

Mounting element to be fixed within the flanges of I- and U-shaped beams. The systems (such as pipes, etc.) supported this way may run parallel or at right angles to the direction of the I or U beam. Also suitable as support for crossbars between two vertically adverse arranged profiles.
Certification
Technical specifications
Primary element material | steel |
Connecting element material | steel |
Surface finish | galvanisch verzinkt (Fe//Zn) |
Corrosion protection class | C2 |
Load range
Type | -VX,perm. | VX,perm. |
SKL | 2,50 kN | 2,50 kN |
