Overview of Types
General Information

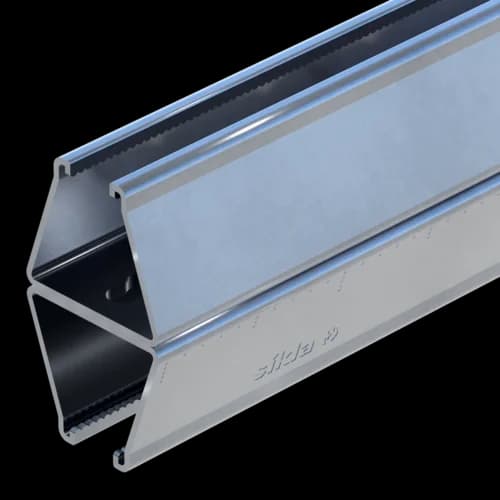

The Channel MS 41 D is a versatile element for technical building equipment and industrial plant construction. It is ideal for simple and professional manufacturing of crossbars, wall brackets and support frames. The internal serration and the possibility of combining it with siConnect system components such as the Slide Element GS 41, the Beam Clamp TCS 1, the T-Head Bolt TBO HZ and all other Sikla CC components, offer maximum flexibility during installation. The MS 41 D is available in various designs, for example as a trapezoidal channel for higher loads.
Certification
Technical specifications
Permissible Tension σ{zul} | 185,00 N/mm² |
Permissible yield strength fy,perm. | 285,00 N/mm² |
Material base body | steel |
Surface | pre-galavanised |
Corossion class | C2 |
Load range
Type | VZ,perm. |
MS 41/21/2,0 D 2M | 4,00 kN |
MS 41/21/2,0 D 6M | 4,00 kN |
MS 41/41/2,0 D 6M | 4,00 kN |
MS 41/41/2,5 D 2M | 6,00 kN |
MS 41/41/2,5 3M | 6,00 kN |
MS 41/41/2,5 D 3M | 6,00 kN |
MS 41/41/2,5 D 6M | 6,00 kN |
MS 41/45/2,5 D 6M | 6,00 kN |
MS 41/52/2,5 D 6M | 6,00 kN |
MS 41/62/2,5 D 6M | 6,00 kN |
MS 41-75/65/3,0 D 6M | 10,00 kN |
MS 41-75/75/3,0 D 6M | 10,00 kN |
Type | MX,perm. |
MS 41/21/2,0 D 2M | 0,04 kNm |
MS 41/21/2,0 D 6M | 0,04 kNm |
MS 41/41/2,0 D 6M | 0,04 kNm |
MS 41/41/2,5 D 2M | 0,04 kNm |
MS 41/41/2,5 3M | 0,04 kNm |
MS 41/41/2,5 D 3M | 0,04 kNm |
MS 41/41/2,5 D 6M | 0,04 kNm |
MS 41/45/2,5 D 6M | 0,04 kNm |
MS 41/52/2,5 D 6M | 0,04 kNm |
MS 41/62/2,5 D 6M | 0,04 kNm |
MS 41-75/65/3,0 D 6M | 0,04 kNm |
MS 41-75/75/3,0 D 6M | 0,04 kNm |
Type | Resistance torque Wy | Resistance torque Wz | Moment of inertia Iy | Moment of inertia Iz | Radius of inertia iy | Radius of inertia iz |
MS 41/21/2,0 D 2M | 2,35 cm³ | 4,22 cm³ | 4,94 cm^4 | 8,65 cm^4 | 1,24 cm | 1,64 cm |
MS 41/21/2,0 D 6M | 2,35 cm³ | 4,22 cm³ | 4,94 cm^4 | 8,65 cm^4 | 1,24 cm | 1,64 cm |
MS 41/41/2,0 D 6M | 7,49 cm³ | 7,30 cm³ | 30,73 cm^4 | 14,97 cm^4 | 2,48 cm | 1,73 cm |
MS 41/41/2,5 D 2M | 8,96 cm³ | 8,79 cm³ | 36,73 cm^4 | 18,03 cm^4 | 2,46 cm | 1,72 cm |
MS 41/41/2,5 3M | 2,94 cm³ | 4,39 cm³ | 6,17 cm^4 | 9,01 cm^4 | 1,42 cm | 1,72 cm |
MS 41/41/2,5 D 3M | 8,96 cm³ | 8,79 cm³ | 36,73 cm^4 | 18,03 cm^4 | 2,46 cm | 1,72 cm |
MS 41/41/2,5 D 6M | 8,96 cm³ | 8,79 cm³ | 36,73 cm^4 | 18,03 cm^4 | 2,46 cm | 1,72 cm |
MS 41/45/2,5 D 6M | 10,48 cm³ | 9,52 cm³ | 47,18 cm^4 | 19,51 cm^4 | 2,70 cm | 1,73 cm |
MS 41/52/2,5 D 6M | 13,41 cm³ | 10,78 cm³ | 69,75 cm^4 | 22,11 cm^4 | 3,11 cm | 1,75 cm |
MS 41/62/2,5 D 6M | 18,16 cm³ | 12,59 cm³ | 112,63 cm^4 | 25,82 cm^4 | 3,71 cm | 1,77 cm |
MS 41-75/65/3,0 D 6M | 23,24 cm³ | 20,54 cm³ | 151,10 cm^4 | 77,02 cm^4 | 3,53 cm | 2,52 cm |
MS 41-75/75/3,0 D 6M | 30,66 cm³ | 22,83 cm³ | 230,02 cm^4 | 85,60 cm^4 | 4,07 cm | 2,48 cm |
Type | Moment of inertia It | Cross-section A |
MS 41/21/2,0 D 2M | 0,03 cm^4 | 3,20 cm² |
MS 41/21/2,0 D 6M | 0,03 cm^4 | 3,20 cm² |
MS 41/41/2,0 D 6M | 0,05 cm^4 | 4,96 cm² |
MS 41/41/2,5 D 2M | 0,10 cm^4 | 6,06 cm² |
MS 41/41/2,5 3M | 0,05 cm^4 | 3,03 cm² |
MS 41/41/2,5 D 3M | 0,10 cm^4 | 6,06 cm² |
MS 41/41/2,5 D 6M | 0,10 cm^4 | 6,06 cm² |
MS 41/45/2,5 D 6M | 0,11 cm^4 | 6,46 cm² |
MS 41/52/2,5 D 6M | 0,12 cm^4 | 7,16 cm² |
MS 41/62/2,5 D 6M | 0,14 cm^4 | 8,16 cm² |
MS 41-75/65/3,0 D 6M | 0,31 cm^4 | 12,06 cm² |
MS 41-75/75/3,0 D 6M | 0,32 cm^4 | 13,84 cm² |
Software
This product is available in the following software.
Documents
- Channel-MS-41-75-75-3,0_centrical-load TEST GB
PDF (0.16MB)
