TPH F 80/30 C

HCP

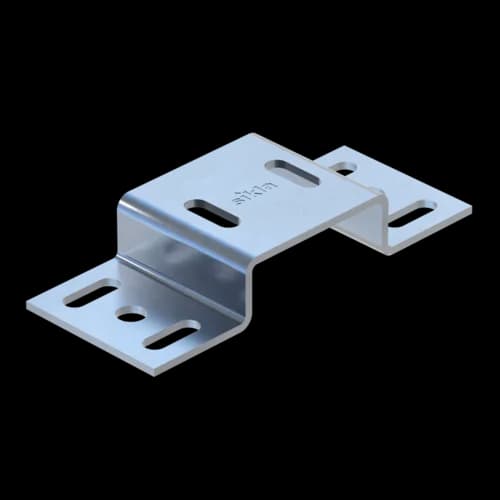

Beam Section Holder TPH-C F 80/30 HCP

Group: A425

Part number 116673

Form-fitting, reinforcing bracket for F 80 or F 80/30 Beam Sections

Connection to other F 80 or F 80/30 profiles as cross connection

Technical Data

b	11 mm
B₁	199 mm
B₂	149 mm
d	14 mm
H	30 mm
L	80 mm
L₁	50 mm
l_z	20 mm
t	4 mm

Load range

-V_X,perm.	16,70 kN
V_X,perm.	16,70 kN
-V_Y,perm.	29,10 kN
V_Y,perm.	29,10 kN
-V_Z,perm.	18,80 kN
V_Z,perm.

The specified load values are permissible loads and contain the partial safety factors γ(M2) = 1,25 (DIN EN 1993-1-8:2010-12, chart 2.1) and γ(G) = 1,35 (DIN EN 1990:2010-12, chart A1.2(B)) for permanent actions.

Technical specifications

Primary element material	steel
Surface finish	HCP
Corrosion protection class	C4

Also available with DualShield for high corrosion protection within C5H environments.

Installation

Connecting one Beam Section F80 or F 80/30 90° to another one by using 6 x Self Forming Screw FLS applied through all elongated holes.
Connecting to any other surface or member by using 2 x Self Forming Screws FLS through the two elongated holes on the top of the Beam Section Holder TPH F80 plus 2 appropriate fixing elements up to M12 through the two holes “d1”.

-M_Y,perm.	0,8 kNm
M_Y,perm.	0,8 kNm
-M_Z,perm.	0,7 kNm
M_Z,perm.	0,7 kNm
