Beam Clamp TCS 41
Group: 1337
Part number 110004
This is a replacement for Old Productname (Part number 123456).
Login to see prices and availabilities

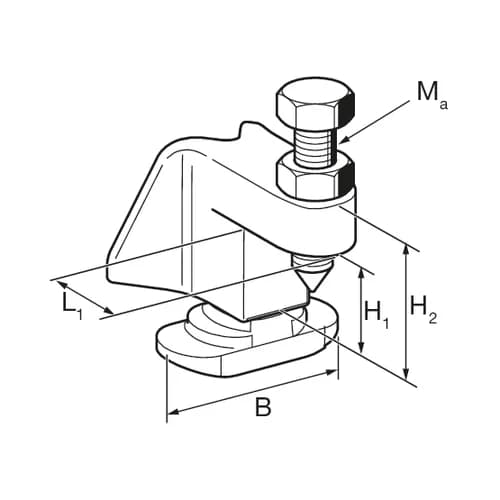

Login or registerTechnical Data
B | 35 mm |
B1 | 15 mm |
L | 39.2 mm |
L1 | 15.25 mm |
H1 | 20 mm |
H2 | 32 mm |
Load range
-VZ,perm. | 4,00 kN |
Technical specifications
Primary element material | cast steel |
Connecting element material | steel |
Surface finish | galvanisch verzinkt (Fe//Zn) |
Corrosion protection class | C2 |
