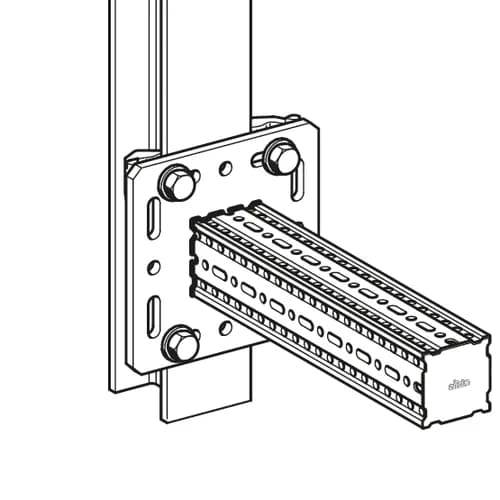

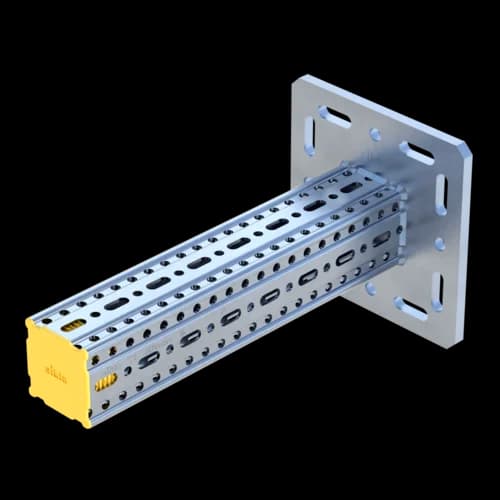

Beam Bracket TKO F 80- 400 HCP
Group: A423
Part number 192788
Technical Data
BP | 220 mm |
HP | 220 mm |
HP2 | 105 mm |
LG | 413 mm |
Load range
-VX,perm. | 106,00 kN |
VX,perm. | 106,00 kN |
-VY,perm. | 64,30 kN |
VY,perm. | 64,30 kN |
-VZ,perm. | 64,30 kN |
VZ,perm. | 64,30 kN |
-MX,perm. | 3,7 kNm |
MX,perm. | 3,7 kNm |
-MY,perm. | 5,5 kNm |
MY,perm. | 5,50 kNm |
-MZ,perm. | 5,5 kNm |
MZ,perm. | 5,5 kNm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
