General Information

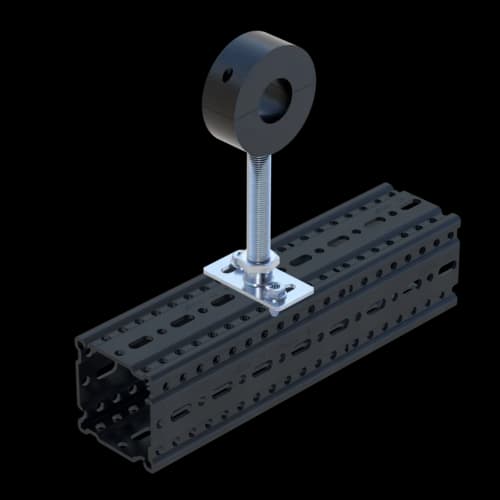

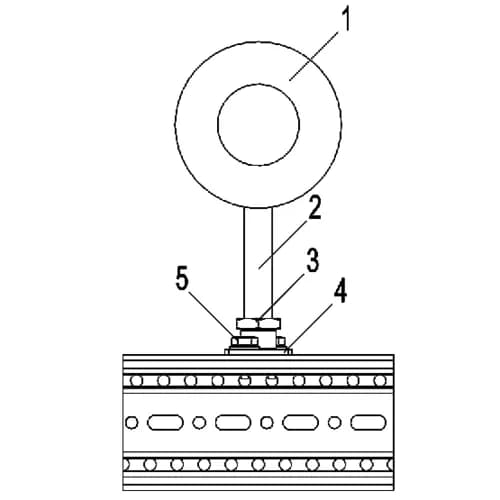

An Assembly Group containing components to make up a permanent pipe connection with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Beam Section TP F 100. It is connected using Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2'.
Technical specifications
Max. temperature | 105 °C |
Min. temperature | -50 °C |
Thermal Conductivity λ {0°C} | λ 0,045 W/Mk |
Fire Performance | B2 according to DIN 4102 |
Bulk Density | 250,00 kg/m³ |
Water vapour diffusion resistance factor | µ 1200 |
Material base body | steel |
Material insulation body | PUR |
Material connecting element | steel |
Surface | HCP |
Corossion class | C4 |
