EV CC41-5
HCP
HCP
Group: 1852

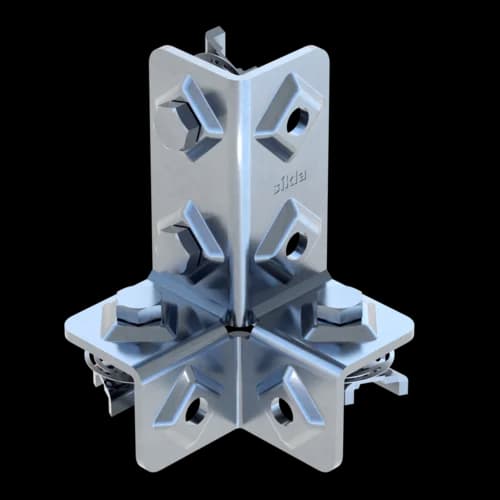

Pre-assembled connecting element in HCP for three-dimensional frame structures
Optimised for linking channels of the 41 series at a 90° angle
Fast-Technique with automatic locking and secure, form-locking connection
Login to see prices and availabilities
To be used in pairs.
Torque: 40 Nm
Info | Type | Weight | Quantity | Part number | Price | |
| EV CC41-5 HCP | 0.713 kg/pcs. | 10 pcs. | 117466 | please log in | ||
Sikla New Strut Connectors
PDF (560 KB)

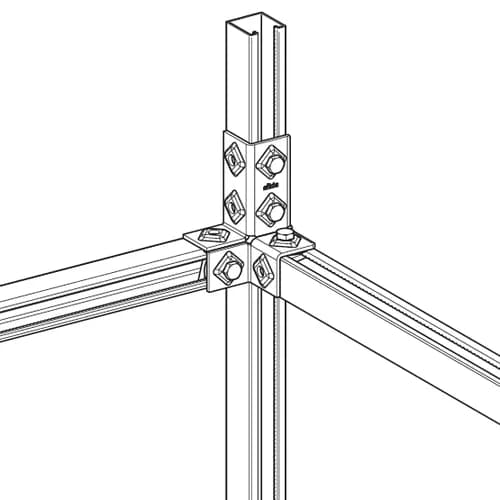

Pre-assembled connecting element in HCP for three-dimensional frame structures, optimised for linking channels of the 41 series at an angle of 90°. Preferably used in combination with 41/41 square channels. The adjustment for the channel opening could still be chosen. Fast-Technique for 90° joints of Channel System 41. Locks automatically when being put in place and supports its own weight. Secure, form-locking, non-positive connection. Serrated Channel Nut with Hexagon Bolt M10. Ideal shaping for high stiffness. The proven Sikla rhomb guarantees a secure torque and preload force.
Certification
Primary element material | steel |
Connecting element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Type | -VZ,perm. | VZ,perm. |
EV CC41-5 HCP | 5,00 kN | 5,00 kN |
Max. perm. Load as centre load per crossbar fixed with 2 Angle Connectors EV CC 41-5.
Software
This product is available in the following software.
