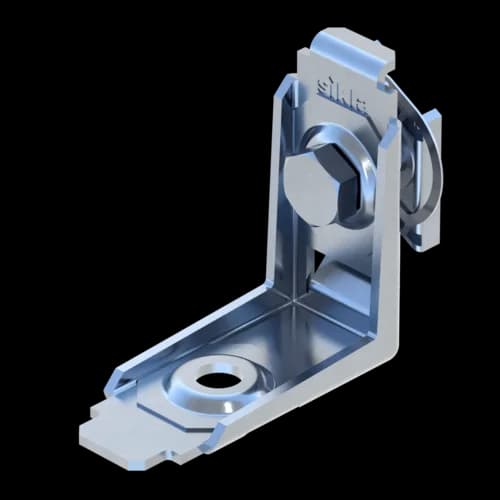

Angle Connector CN CC27 W
Group: 2726
This is a replacement for Old Productname (Part number 123456).
Login to see prices and availabilities
Login or registerOverview of Types
General Information
Pre-assembled connecting angle especially for frames made of Channels MS 27. Type W for connection to wall, floor or ceiling. Quick-locking mechanism for 90° junction of CC-27 system. By pressing on the bolt head the connector automatically locks into the channel, supporting its own weight and retaining its position, enabling easy adjustment. Secure form-locked connection. Serrated channel nut with M8 clamping bolt. Stiff and strong due to high-performance steel and geometric design.
Certification
Technical specifications
Primary element material | steel |
Connecting element material | steel |
Surface finish | galvanisch verzinkt (Fe//Zn) |
Corrosion protection class | C2 |
Load range
Type | VX,perm. | VZ,perm. |
CN CC27 - 90°W | 0,80 kN | 0,80 kN |
